Flow graph of a 2-port network with source and load

To demonstrate the utility of flow graphs. Let's embed a two-port network between a source and a load.

 figure361

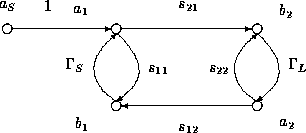

Figure 13: Flow graph for a two-port network with a source and a load
