Flow graph of a source

A generator with an internal voltage source and an internal impedance will have a wave emanating from it. We define a new term, text_wrap_inline2879, for the wave emanating from the source. Where
equation345
Note that text_wrap_inline2879 is the square root of the power transmitted to the transmission line.

 figure349

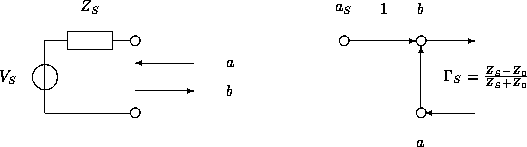

Figure 11: Flow graph for a generator

text_wrap_inline2883 is the reflection coefficient of the source.
